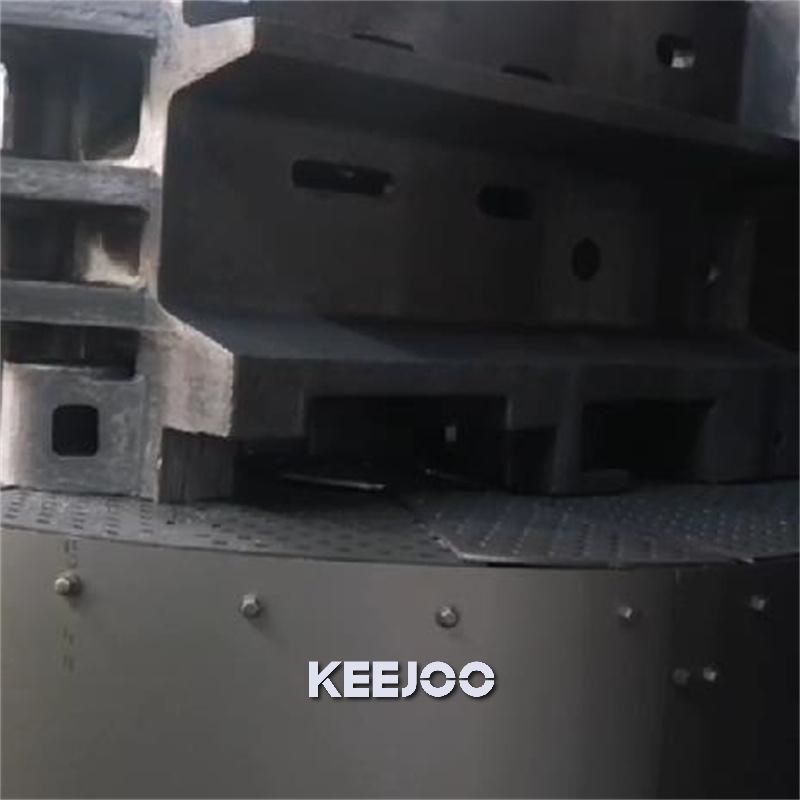

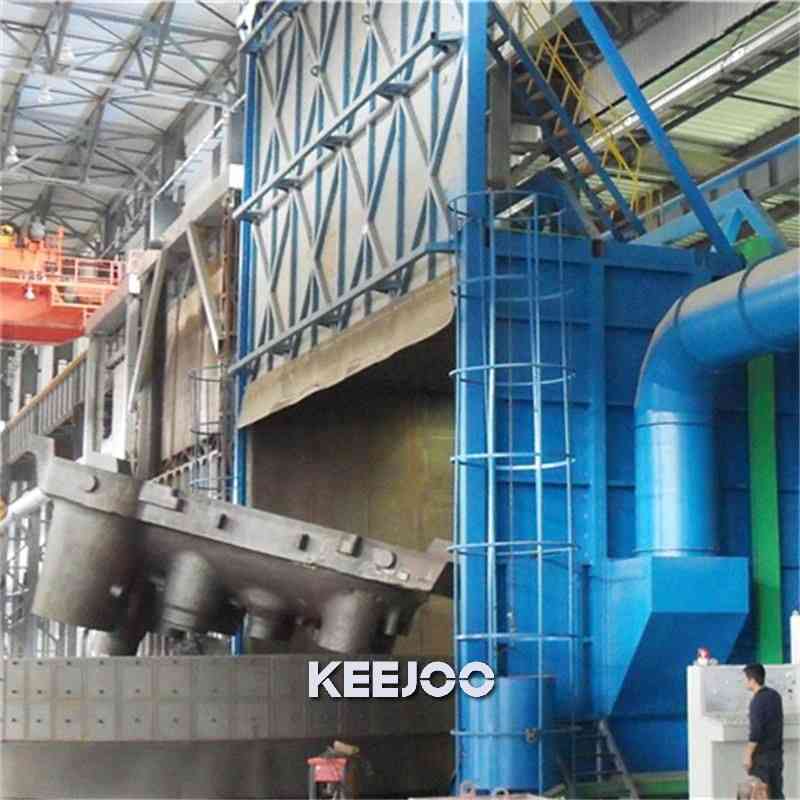

Rotary Trolley Shot Blasting Machine
Send Inquiry
Product details of
Rotary Trolley Shot Blasting Machine
Description
The rotary trolley shot blasting machine is mainly used for surface shot blasting cleaning of forgings, large castings and structural parts. High-speed rotating blast wheels accelerate abrasives toward workpiece surfaces. The impact and abrasive scouring action can remove molding sand, oxide scale, rust and dirt from workpieces. Meanwhile, it relieves surface stress, improves the fatigue resistance of workpieces, enhances paint film adhesion during subsequent coating, and ultimately upgrades both the surface appearance and internal quality of workpieces.
Technical Parameters of Rotary Bogie Shot Blasting Machine
| Model No. | Workpiece Dimension (mm) | Bogie Load Capacity (t) | Abrasive Blasting Rate (kg/min) | Abrasive Circulation Volume (t/h) |
|---|---|---|---|---|
| ZQ765 | φ2000×1000 | 5 | 2×250 | 30 |
| ZQ7610 | φ2500×1500 | 10 | 3×250 | 45 |
| ZQ7620 | φ3500×3000 | 20 | 4×250 | 60 |
| ZQ7630 | φ4500×2000 | 30 | 5×250 | 75 |
| ZQ7650 | φ5000×2000 | 50 | 6×250 | 90 |
Quality Warranty & After-sales Service
- The supplier guarantees that the product name, model, specifications and quantity fully comply with the technical agreement.All equipment is brand new, manufactured with qualified raw materials and mature processing technology.There are no defects in design, raw materials and production processes. The equipment meets all buyer requirements and national industrial standards, featuring stable and reliable quality.
- Our professional after-sales service engineers can provide overseas machinery maintenance service.Exclusions: damages caused by force majeure, improper operation and natural wear of wearing parts.
- All equipment will pass factory acceptance testing before shipment. Only after passing quality inspection will the machine be disassembled, anti-corrosion coated and delivered.
Advantages
Full manganese steel machine body and full manganese steel protective liners, service life up to 20 years
Equipped with advanced Venturi dust removal system
Secondary separation system for broken steel abrasives
High-performance ABB motors matched with H-series blast wheels; all main structural parts are made of high-strength steel
