Product details of

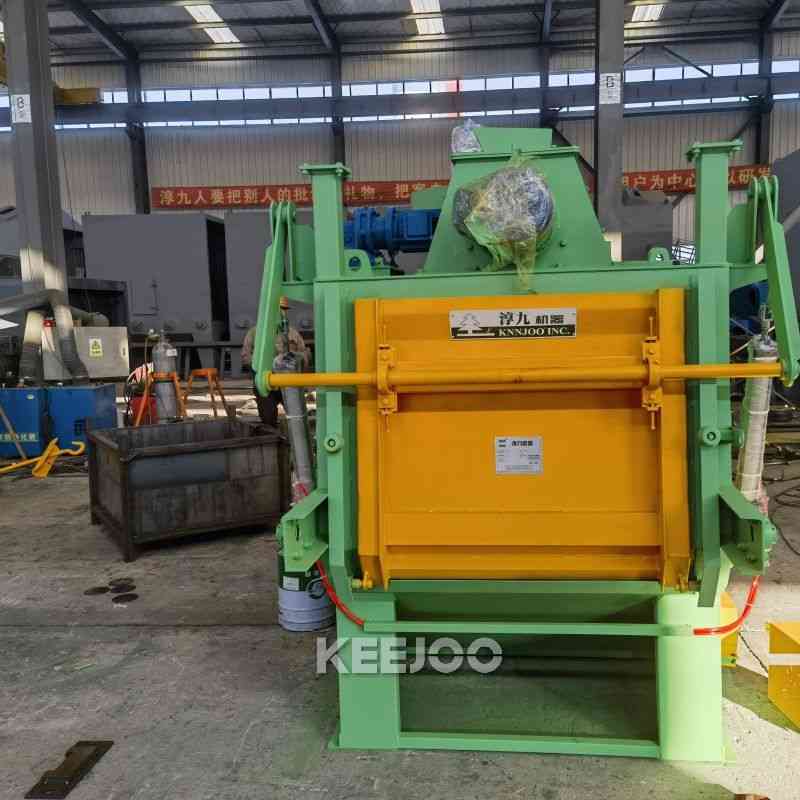

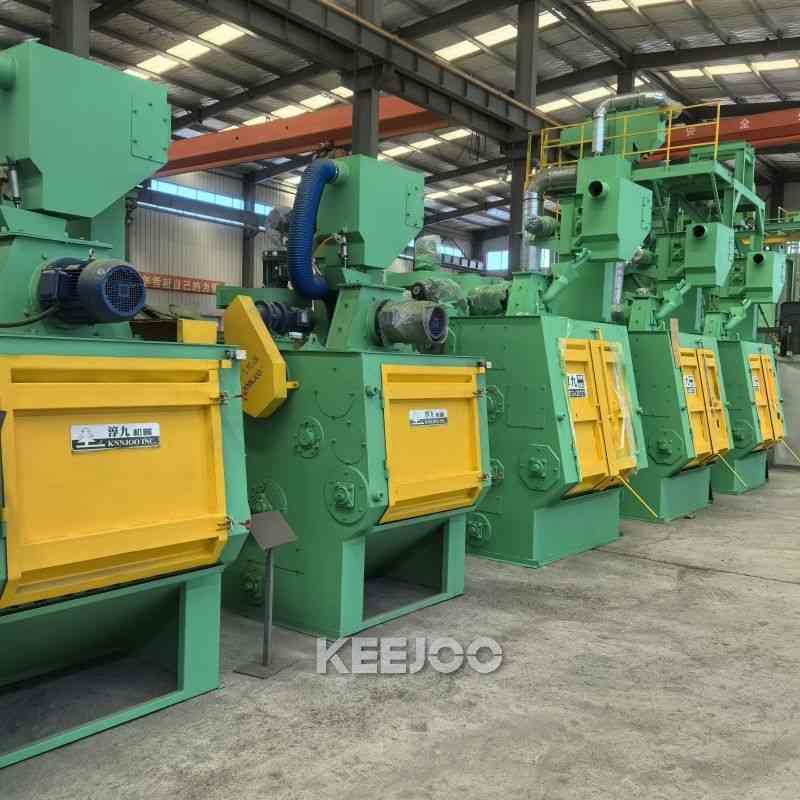

Crawler Type Shot Blasting Machine
Description
The GN series rubber crawler shot blasting machine is designed to remove rust, scale and burrs from the surfaces of rollable cast and forged workpieces that are resistant to collision damage. Equipped with reliable protective structures, high blasting efficiency and a well-designed circulation system, this machine delivers excellent cleaning results even for hard-to-treat workpieces, and it can also strengthen mechanical parts such as gears and springs.
Technical Data
| Parameter | Unit | 3GN | 8GN | 8GN-5R | 15GN |
|---|---|---|---|---|---|
| Productivity | t/h | 0.6–1.2 | 2–4 | 2–3 | 3–5 |
| Loading Capacity | kg | 220 | 650 | 650 | 1000 |
| Max. Single Workpiece Weight | kg | 12 | 32 | 32 | 55 |
| End Disc Diameter | mm | 650 | 1000 | 1000 | 1150 |
| Effective Volume | m³ | 0.15 | 0.3 | 0.3 | 0.5 |
| Abrasive Flow Rate | kg/min | 180 | 270 | 270 | 300 |
| Ventilation Capacity | m³/h | 2300 | 3500 | 3500 | 5000 |
| Total Power | kW | 13.1 | 23.2 | 27.4 | 39.4 |
Product Models
Item No.: 3GN Rubber Crawler Shot Blasting Machine with Manual DoorItem No.: 8GN Crawler Shot Blasting Machine with Manual DoorItem No.: 8GN Crawler Shot Blasting Machine with Pneumatic DoorItem No.: 8GN-5R Crawler Shot Blasting Machine with Automatic Feeding & Vibratory ConveyorItem No.: 15GN Steel Crawler Shot Blasting Machine with Automatic Feeding & Vibratory ConveyorItem No.: 28GN Steel Crawler Shot Blasting Machine with Automatic Feeding & Vibratory Conveyor
Working Principle
The crawler shot blasting machine is fitted with high-strength wear-resistant rubber crawlers or manganese steel crawlers to hold workpieces. High-speed rotating blast wheels hurl abrasives onto workpieces inside the blasting chamber to complete surface cleaning.It is suitable for sand removal, rust removal, descaling and surface strengthening of small castings, forgings, stampings, gears, springs and other parts, especially workpieces that can withstand collisions.The rubber crawler forms an accommodating cavity for workpieces. During operation, the rotating crawler makes parts tumble inside the cavity, so both inner and outer surfaces can be thoroughly cleaned.This series is available with manual or automatic loading and unloading, ideal for mass shot blasting of small components. The rubber crawler cushions collisions and reduces scratches on workpieces, leaving minimal surface marks. Its user-friendly operation makes it widely adopted by manufacturers worldwide.
Applications
Shot peening of high-load mechanical componentsSand removal and descaling for castings & forgingsSurface preparation for protective coatingGeneral cleaning of cast and forged partsDecorative finishing of aluminum, zinc and alloy steel castingsRemoval of thermal treatment scale
