Steel Strip Rust Removal Shot Blasting Machine
Description

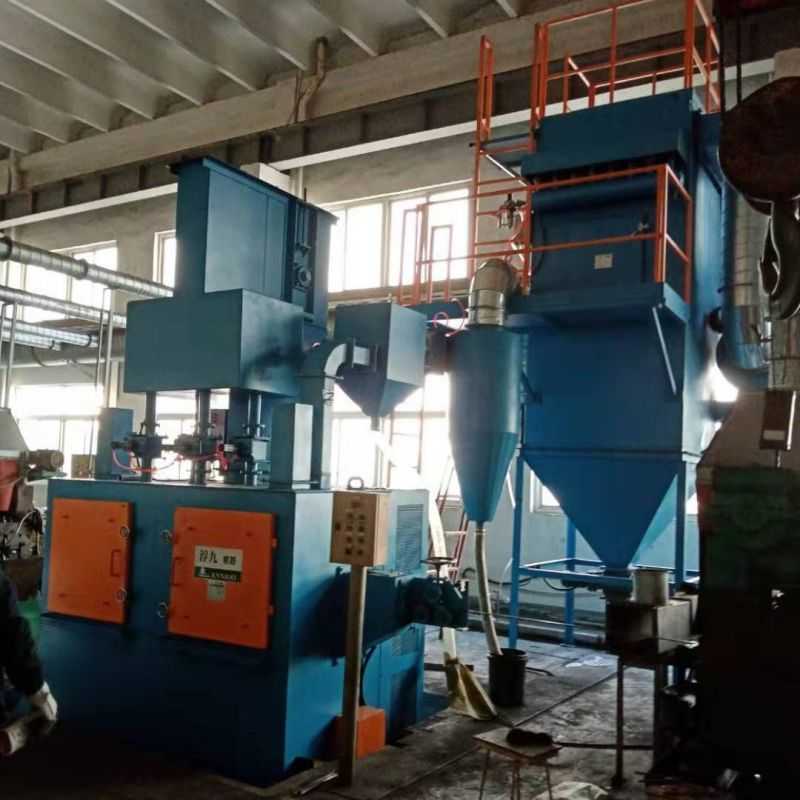

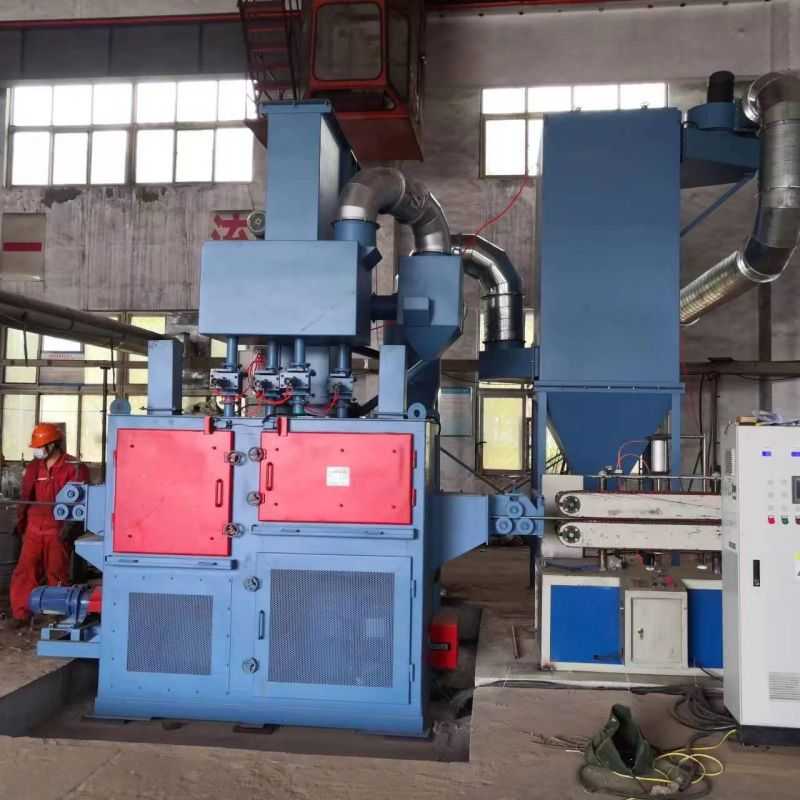

The steel strip shot blasting machine is special mechanical equipment designed exclusively for surface cleaning of steel strips.
It mainly consists of shot blast wheels, abrasive circulation system, steel strip conveying system, blasting chamber, dust removal system and other assemblies.
During operation, shot blast wheels eject abrasives at high velocity onto the steel strip surface. The impact and friction of abrasives remove scale, rust, welding slag and surface dust, achieving the dual purpose of cleaning and surface strengthening for steel strips.
This equipment features high cleaning efficiency, excellent treatment results and a high degree of automation. It greatly improves the surface quality and subsequent processing performance of steel strips. Meanwhile, the built-in dust removal system efficiently collects and treats dust generated in the blasting process to reduce environmental pollution.
Technical Parameters
We will recommend the suitable model according to your workpieces and technical requirements.
| Model | XQGD400 | XQGD650 | XQGD800 | XQGD1000 |
|---|---|---|---|---|
| Workpiece Width (mm) | 400 | 650 | 800 | 1000 |
| Workpiece Thickness (mm) | 0.5–3 | 0.5–3 | 0.5–3 | 0.5–3 |
| Blasting Speed (m/min) | 8–12 | 8–12 | 8–20 | 8–20 |
| Number of Blast Wheel Sets | 4 | 4 | 4 | 4 |
| Single Blast Wheel Power (kW) | 22–37 | 22–37 | 22–55 | 22–55 |
Advantages
Equipped with high-speed rotating blast wheels, the steel strip shot blaster rapidly removes surface contaminants such as scale and rust. It optimizes surface smoothness and roughness, significantly enhancing coating adhesion and corrosion resistance of workpieces.
Environmental protection is fully considered in the equipment design. A closed-loop system efficiently collects and filters blasting waste and dust, cutting down environmental pollution and energy consumption.
Moreover, this machine adopts premium core components including blast wheels, motors and reducers. It boasts high structural strength, outstanding wear resistance and reliable performance, enabling stable long-term continuous operation.
The structure is reasonable and compact. Index rollers carry out preliminary treatment of workpieces to boost processing efficiency and precision. An automatic centering function prevents collisions between lifting hooks and workpieces. All electrical components are installed inside the machine frame for easy maintenance.
Complete safety protection devices are fitted to avoid personal injury accidents. All main parts are manufactured from high-grade materials to guarantee stable quality and long service life.
The machine delivers convenient, safe operation, high production output and favorable economic benefits. It is the ideal equipment for removing iron scale, surface stains and rust of all types.
Working Principle
The steel strip shot blasting machine is mainly composed of feeding system, blasting system, discharging system, control system, electric motor and other parts.
First, the workpiece enters the blasting chamber via the feeding system. Then high-speed rotating blast wheels in the blasting unit hurl abrasives onto the workpiece surface to strip off surface contaminants.
After cleaning finishes, the steel strip exits the blasting chamber through the discharging system.
The blasting unit is equipped with high-speed rotors loaded with hundreds to thousands of steel shots. When the electric motor starts, the rotor spins rapidly and accelerates steel shots outward at high speed.
As steel shots strike the strip surface, they scour away surface impurities. The contact and impact force between steel shots and workpieces thoroughly eliminate contaminants to achieve ideal cleaning performance.
Information Required for Customized Machine Recommendation
Please provide the following details so we can match the proper machine model for you:
Type, material and shape of your workpieces
Maximum length, width, height of workpieces, as well as maximum and minimum workpiece weight
Required processing capacity (tons or pieces per day / per month)
Local power supply standard (Our factory standard: 380V, 3-phase, 50Hz)
Photos or engineering drawings of workpieces are highly appreciated
