Steel Pipe Shot Blasting Machine
Description

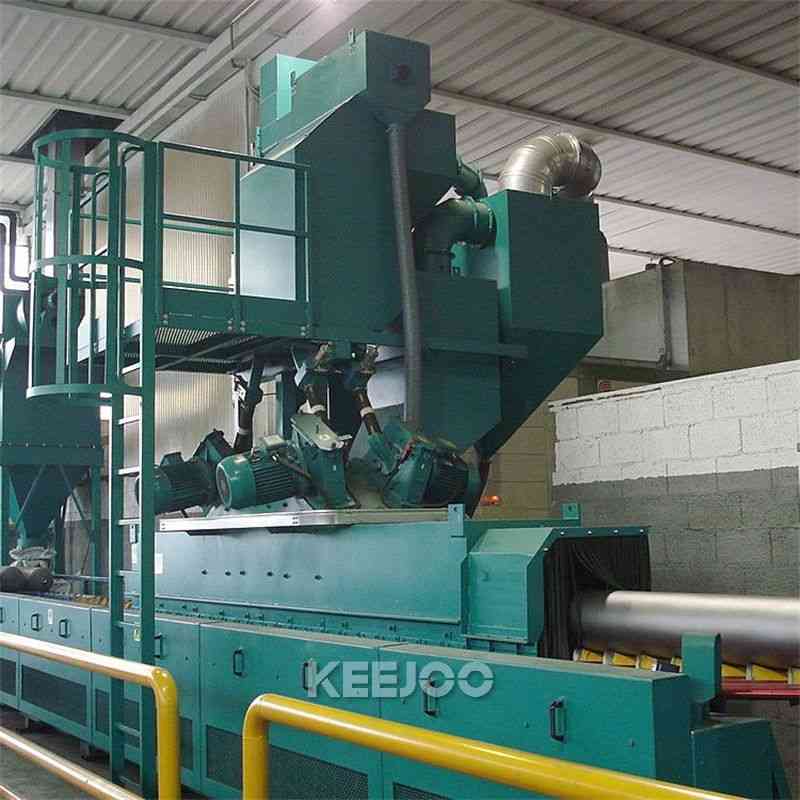

The QG series is a special dedicated shot blasting machine for both inner and outer walls of steel pipes. It performs shot blasting treatment on the outer surfaces of steel and steel products to remove oxide layers and residues such as welding slag, restoring a metallic luster to the workpiece surface. It enlarges the effective surface area of workpieces and facilitates subsequent painting and coating processes.

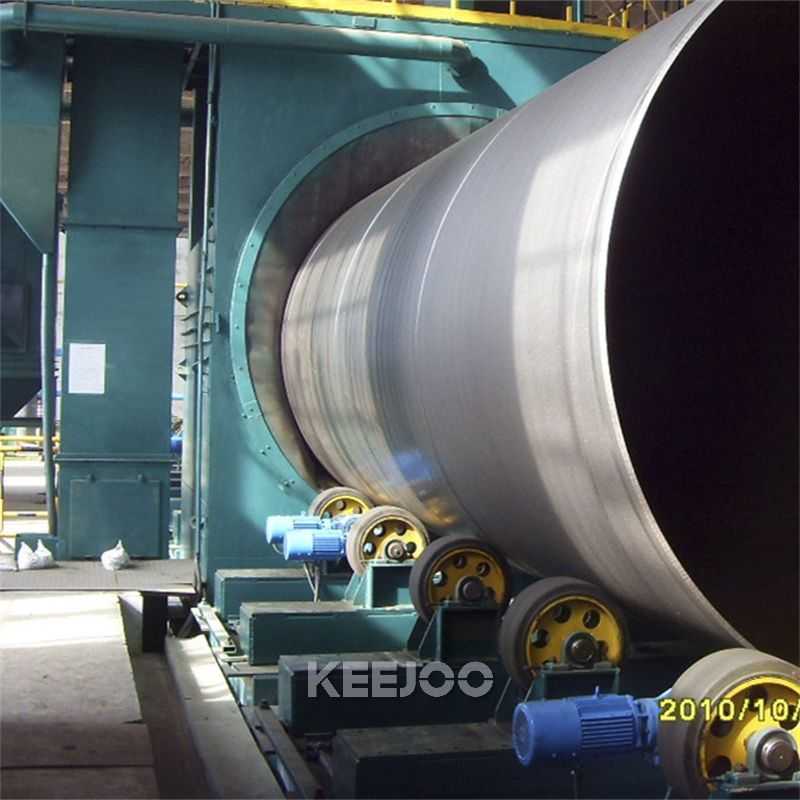

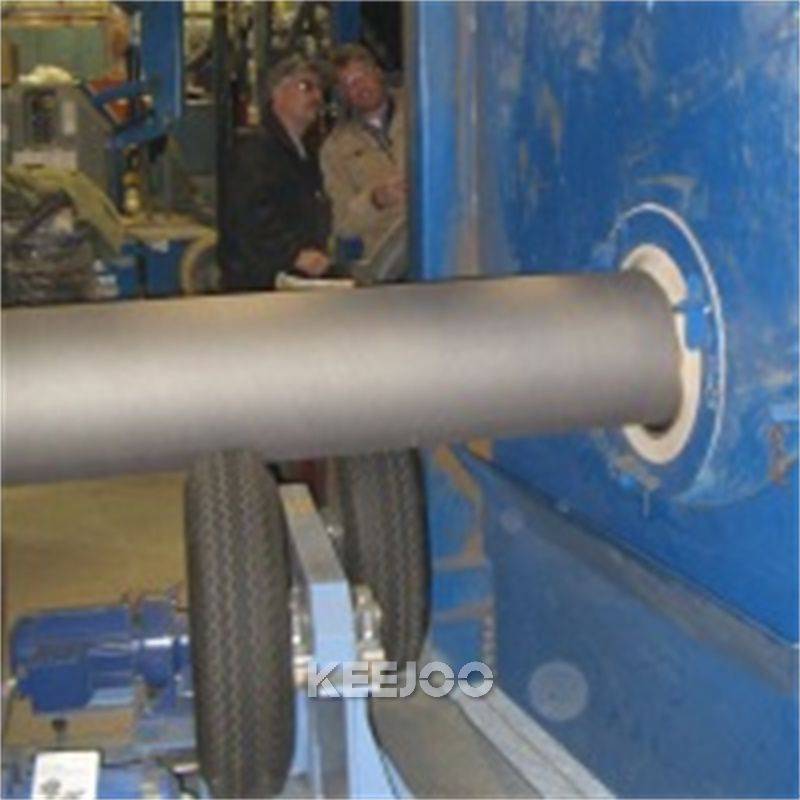

Features: Blast wheels are installed at optimal positions (on the side or bottom of the machine cabinet). Workpieces rotate fully during conveying, delivering uniform blasting results for pipes of varying diameters.
Technical Data
| Model | Cleaning Diameter Range (mm) | Processing Speed (m/min) | Application |
|---|---|---|---|
| QGW100 | 50–300 | 2–10 | External Pipe Shot Blasting Machine |
| QGW720 | 159–720 | 2–6 | External Pipe Shot Blasting Machine |
| QGW1200 | 219–1016 | 1–6 | External Pipe Shot Blasting Machine |
| QGW1500 | 325–1600 | 1–6 | External Pipe Shot Blasting Machine |
| QGW2800 | 1016–2800 | 1–2 | External Pipe Shot Blasting Machine |
| QGN100 | 50–300 | 1–4 | Internal Pipe Shot Blasting Machine |
| QGN700 | 325–720 | 1–2 | Internal Pipe Shot Blasting Machine |
| QGN1000 | 720–1016 | 1–4 | Internal Pipe Shot Blasting Machine |
| QGN1500 | 1016–1500 | 1–4 | Internal Pipe Shot Blasting Machine |
Applications
Remove mill scale and welding residues
Restore natural metallic surface finish
Improve surface roughness and welding adhesion
Expand effective surface contact area
Greatly enhance the adhesion of paints and coatings
Boost corrosion resistance of metal components
Increase steel fatigue resistance and extend service life
Optimize steel surface treatment quality
Achieve thorough and complete surface cleaning
Information Required for Customized Machine Selection
Please provide the following information so we can recommend the most suitable equipment:
Type, material and shape of your workpieces
Maximum length, width and height of workpieces, plus maximum and minimum workpiece weight
Required blasting productivity (tons or pieces per day / per month)
Power supply standard required (Chinese standard: 380 V, 3-phase, 50 Hz)
Photos or technical drawings of workpieces (preferred)
